Tugas CCNA SMK YP Colomadu Klass 2
oleh Egar

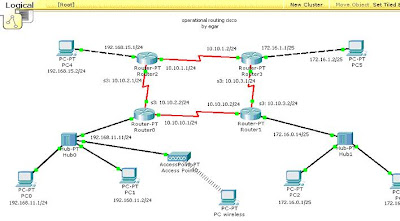

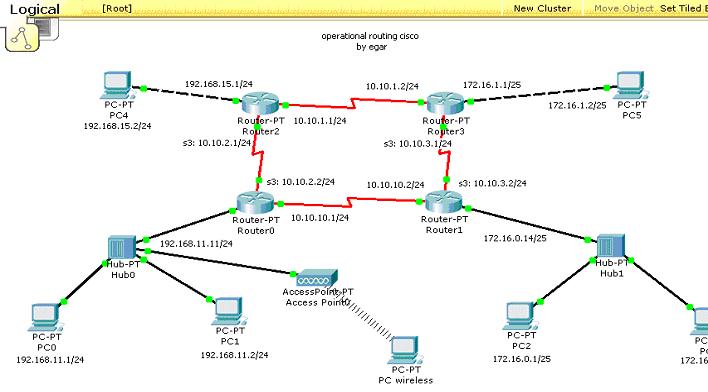

Setting Router 0>
Router>en
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 192.168.11.11 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#int s2/0
Router(config-if)#ip ad
Router(config-if)#ip address 10.10.10.1 255.255.255.0
Router(config-if)#clo
Router(config-if)#clock r
Router(config-if)#clock rate 64000
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 192.168.11.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 32/53/79 ms
Router#ping 192.168.11.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.2, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 17/33/51 ms
Setting Router 1>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address
Router(config-if)#ip address 172.16.0.14 255.255.255.128
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#int s2/0
Router(config-if)#ip address 10.10.10.2 255.255.255.0
Router(config-if)#clock rate 64000
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
.!!!!
Success rate is 80 percent (4/5), round-trip min/avg/max = 34/56/79 ms
Router#ping 172.16.0.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 32/44/79 ms
1. Meroute router 0> ke router 1>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.0.0 255.255.255.128 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 172.16.0.
Translating "172.16.0."...domain server (255.255.255.255)
% Unrecognized host or address or protocol not running.
Router#ping 172.16.0.14
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.14, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 31/47/63 ms
Router#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
!.!.!
Success rate is 60 percent (3/5), round-trip min/avg/max = 78/104/156 ms
Router#ping 172.16.0.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.2, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 62/62/63 ms
2. Meroute router 1> ke router 0>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.11.0 255.255.255.0 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 192.168.11.11
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.11, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 15/24/31 ms
Router#
Router#ping 192.168.11.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 63/94/125 ms
Router#ping 192.168.11.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 53/77/109 ms
Setting Router 2>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 192.168.15.1 255.255.255.0
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#int s2/0
Router(config-if)#ip address 10.10.1.1 255.255.255.0
% 10.10.2.0 overlaps with Serial3/0
Router(config-if)#clock rate 64000
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 192.168.15.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.15.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 15/68/156 ms
Setting Route3>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 172.16.1.1 255.255.255.128
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#int s2/0
Router(config-if)#ip address 10.10.1.2 255.255.255.0
Router(config-if)#clock rate 64000
Router(config-if)#no shutdown
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 172.16.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 18/28/32 ms
Meroute router2> ke router3>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.1.0 255.255.255.128 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 172.16.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 47/100/156 ms
Router#
Meroute router3> ke router2>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.15.0 255.255.255.0 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 192.168.15.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.15.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 62/87/125 ms
Setting router 0> s3/0
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int s2/0
Router(config)#int s3/0
Router(config-if)#ip address 10.10.2.1 255.255.255.0
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
Setting router 2>s3/0
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int s3/0
Router(config-if)#ip address 10.10.2.2 5.255.255.0
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
Meroute router 0> ke router 2>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.15.0 255.255.255.0 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 192.168.15.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.15.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 62/87/125 ms
Meroute router 0> ke router 2>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.11.0 255.255.255.0 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 192.168.11.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.1 timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 62/87/125 ms
Setting router 1> s3/0
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int s3/0
Router(config-if)#ip address 10.10.3.2 255.255.255.0
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
Setting router 3> s3/0
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#int s3/0
Router(config-if)#ip address 10.10.3.1 255.255.255.0
Router(config-if)#exit
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#
Meroute router 1>ke router 3>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.1.0 255.255.255.128 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 172.16.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.2 timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 62/87/125 ms
Meroute router 3> ke router 1>
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.0.0 255.255.255.128 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1 timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 62/87/125 ms
Meroute router 2> ke router 1>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 10.10.10.0 255.255.255.0 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
estination filename [startup-config]?
Building configuration...
[OK]
Router#ping 10.10.10.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.10.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 31/60/141 ms
Router#ping 10.10.10.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.10.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 78/103/141
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.0.0 255.255.255.128 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 172.16.0.14
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.14, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 79/86/94 ms
Router#ping 172.16.0.14
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.14, timeout is 2 seconds:
!.!.!
Success rate is 60 percent (3/5), round-trip min/avg/max = 62/67/78 ms
Router#ping 172.16.0.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.1, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 110/125/141 ms
Router#ping 172.16.0.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.0.2, timeout is 2 seconds:
..!.!
Success rate is 40 percent (2/5), round-trip min/avg/max = 78/102/126 ms
Router#
Meroute router 2> ke router 1>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 10.10.2.0 255.255.255.0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
estination filename [startup-config]?
Building configuration...
[OK]
Router#ping 10.10.2.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.2.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 31/60/141 ms
Router#ping 10.10.2.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.2.2, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 78/103/141
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.15.0 255.255.255.0 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 192.168.15.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.15.2, timeout is 2 seconds:
!!!!!
Success rate is 40 percent (2/5), round-trip min/avg/max = 79/86/94 ms
Router#
Meroute router 3> ke router 0>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 10.10.10.0 255.255.255.0 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
estination filename [startup-config]?
Building configuration...
[OK]
Router#ping 10.10.10.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.10.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 31/60/141 ms
Router#ping 10.10.10.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.10.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 78/103/141
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 192.168.11.0 255.255.255.0 s3/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 192.168.11.11
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.11, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 79/86/94 ms
Router#ping 192.168.11.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.1, timeout is 2 seconds:
!!!!!
Success rate is 60 percent (3/5), round-trip min/avg/max = 62/67/78 ms
Router#ping 192.168.11.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 192.168.11.2, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 110/125/141 ms
Router#
Meroute router 0> ke router 3>
Router>enable
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 10.10.3.0 255.255.255.0 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
estination filename [startup-config]?
Building configuration...
[OK]
Router#ping 10.10.3.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.3.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 31/60/141 ms
Router#ping 10.10.3.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 10.10.3.1, timeout is 2 seconds:
!!!!!
Success rate is 100 percent (5/5), round-trip min/avg/max = 78/103/141
Router#conf t
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#ip route 172.16.1.0 255.255.255.128 s2/0
Router(config)#exit
%SYS-5-CONFIG_I: Configured from console by console
Router#copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#ping 172.16.1.1
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.1, timeout is 2 seconds:
.!.!.
Success rate is 40 percent (2/5), round-trip min/avg/max = 79/86/94 ms
Router#ping 172.16.1.2
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 172.16.1.2, timeout is 2 seconds:
!!!!!
Success rate is 60 percent (3/5), round-trip min/avg/max = 62/67/78 ms
Ping PC 0 ke PC 4
Ping PC 5 ke PC 0
Ping PC 3 ke PC 4
Ping PC 1 ke PC 3
